Generator Rotor Automatic Balancing Machines

1.Manual loading or unloading 2.Can meet multi-angle weight-removing requirement 3.Rigid structural design longer service life 4.Belt-drive model,higher accuracy and greater convenience 5.New iteration JP-900 electric measuring system with 12inch touch screen 6.Man-machine interface can memorize the production capacity and real-time production information 7.Special balancing machine used for generator rotor,can eliminate the unbalance caused by processing and assembly errors,reduce vibration caused by unbalance

Product Details

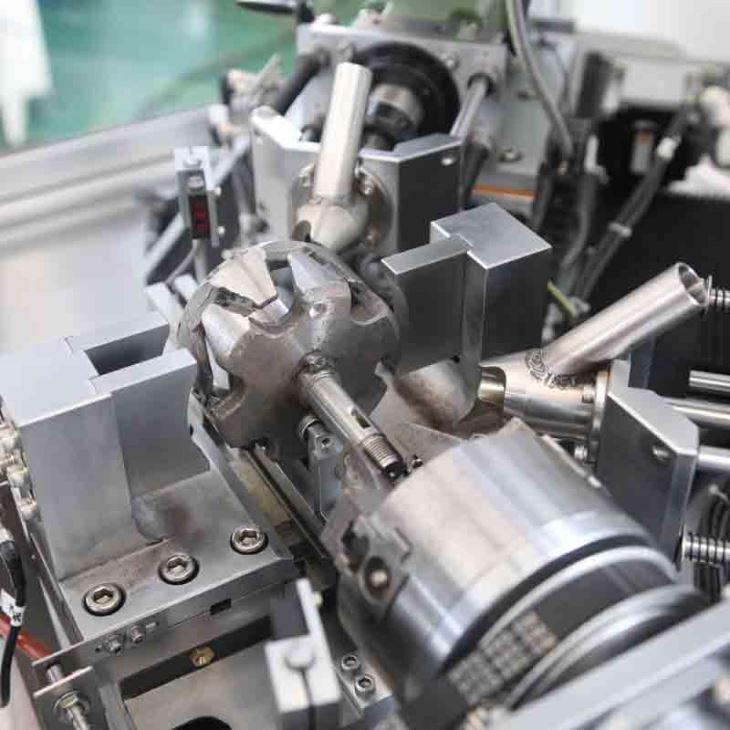

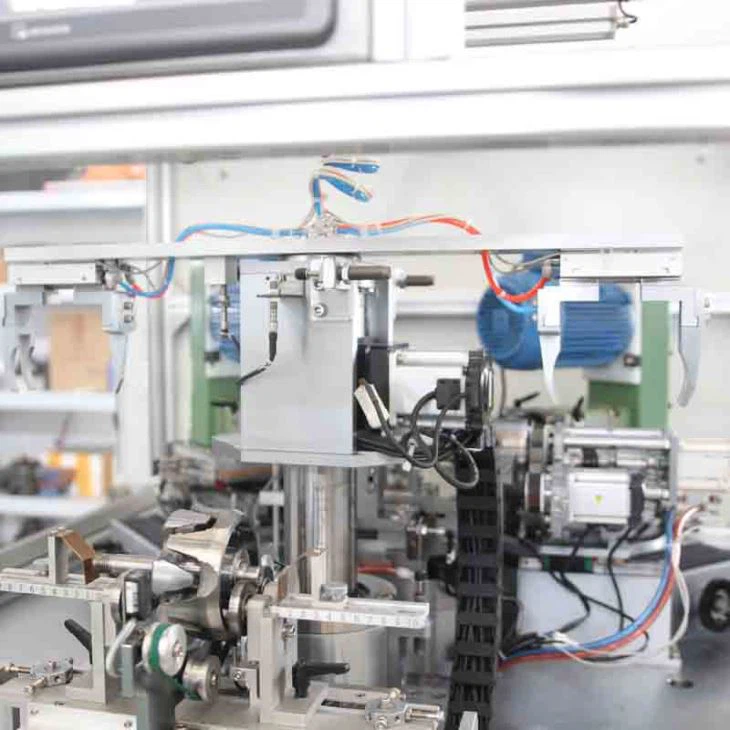

Generator Rotor Drilling Two-Station Automatic Balancing Machine


1.Manual loading or unloading

2.Can meet multi-angle weight-removing requirement

3.Rigid structural design longer service life

4.Belt-drive model,higher accuracy and greater convenience

5.New iteration JP-900 electric measuring system with 12inch touch screen

6.Man-machine interface can memorize the production capacity and real-time production information

7.Special balancing machine used for generator rotor,can eliminate the unbalance caused by processing and assembly errors,reduce vibration caused by unbalance


Technical data at a glanceA2WZ9
Max Weight of Workpiece (kg)5
Max Diameter of Workpiece (mm)40-120
Rotor Stack Thickness (mm)30-120
Journal Diameter (mm)φ8-34
Balancing Speed (r/min),≤2500
Balancing Motor Power (kw)0.4 KW Servo Motor
Min Achievable Residual Unbalance Amount (g.mm/kg)≤0.3
Testing Time (second)8-12
Reduction Rate of Unbalance≥90%
Working Pressure (MPa)0.4-0.6
Operating Voltage (V)AC: 380V external
Weight-Removing MethodDrilling
Drilling Power (kw)0.75
Balancing Machine TypeSoft Bearing Measuring Bracket
Machine Power (kw)6.75
Average Machine Consumption(l/min)60
ProtectionPhase sequence protection, overload protection, pressure monitoring
