Horizontal Balancing Machine for Vacuum Roller

Horizontal Balancing Machine for Vacuum Roller

Roller Balancing Machine, Balancing Machine, Dynamic Balancing Machine manufacturer / supplier in China, offering Horizontal Balancing Machine for Vacuum Roller, Jp Jianping Turboprop Turbojet Aircraft Turbine Balancing Machinery, Jp Jianping Motorcycle Brakes Automotive Brakes Balance Machine and so on.

Product Details

Horizontal Balancing Machine for Vacuum Roller



Basic Info

  • Model NO.: PHQ-50

  • Weight: 100-500Kg

  • Trademark: Jp

  • Origin: Shanghai China

  • Type: Vibration Testing Machine

  • Power Source: AC380V

  • Specification: ISO9001: 2008 CE SGS

  • HS Code: 90311000

Product Description

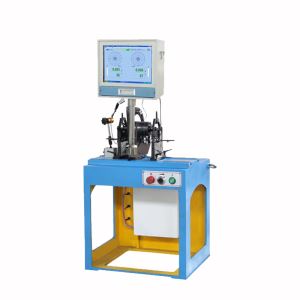

Horizontal Balancing Machine for Vacuum Roller


Universally applicable through modular design
Safe handling through economic design concept
Full range of safety equipment for all protection classes
Easy change-over to different rotors

Production Description:

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Special Features:

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments



Range of Application:

Horizontal Balancing Machine for Vacuum Roller (PHQ-50) is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency

Certificated


Production Parameters:

Technical data at a glancePHQ-50
Max Mass of Workpiece (kg)50
Max Diameter of Workpiece (mm)700
Distance between Two Support Bearings (mm)80--700
Journal Diameter Scope of Workpiece (mm)8~80
Diameter Scope of Driving Belt (mm)18~200
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) 700/1050 Stepless speed regulation
Motor Power (kw)0.75 Frequency conversion
Min Achievable Residual Unbalance Amount (emar)0.5g. mm/kg

After Sale Service:
Professional engineer and application specialists respond to your requests efficiently
Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer
Follow up the case, record the entire process. Solution will be provide with 24 hours
Meanwhile, the problem complaint will be reported to QC department
QC will find defect from which department, who is in charge to identify responsibility
Collecting and record customer respond, suggestion, requirement

Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.

About Us:
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. Is a professional manufacturer of dynamic balancing machine, which is high-tech technology enterprises of Optical-electro-mechanical Integration,

There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
