Universal Joint Balancing Machines Q with Belt Drive

Hard Bearing Balancing Machine, Balancing Machine, Dynamic Balancing Machine manufacturer / supplier in China, offering Universal Joint Balancing Machine Q with Belt Drive, Jp Centrifugal Fan Motor Rotor Dynamic Field Balancing Machine, High Accuracy Jp Jianping Brushless Motor Dynamic Balancing and so on.

Product Details

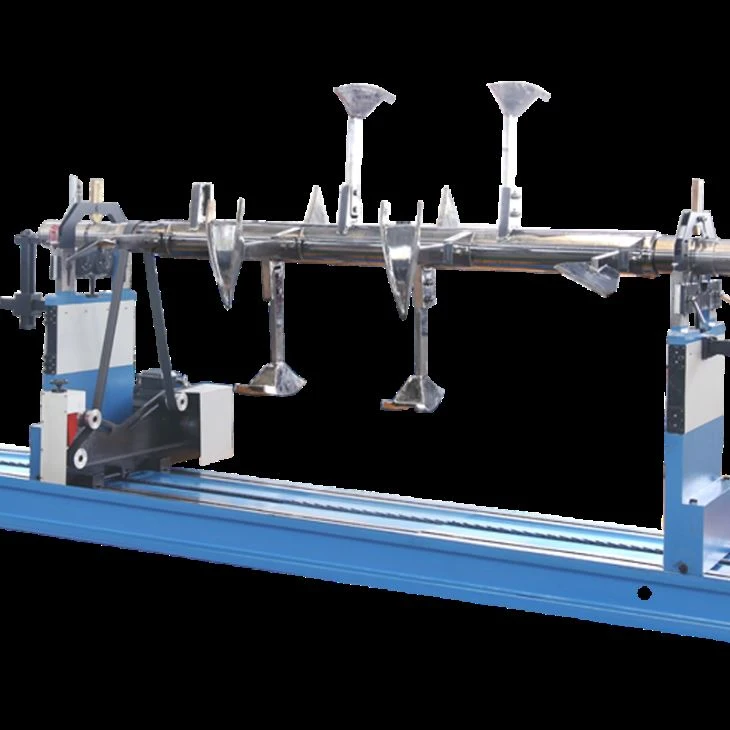

Universal Joint Balancing Machine Q with Belt Drive



Basic Info

  • Model NO.: PHW-2000

  • Weight: 1000-2000Kg

  • Length: 3550 Mm

  • Height: 1650 Mm

  • Trademark: JP

  • Origin: Shanghai China

  • Type: Vibration Testing Machine

  • Power Source: AC380V

  • Width: 1050 Mm

  • Gross Weight: 2200 Kg

  • Specification: ISO. CE. SGS

  • HS Code: 903110009

Product Description



Universal Joint Balancing Machine Q with Belt Drive



Production Description

Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling, transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interface

Range of Application

Universal Joint Balancing Machine Q With Belt Drive PHW-2000 is also mainly used in checking the balance of rotatable bodies such as medium-sized and large-sized motors, spindles of machine tools, blower, centrifuges, generator rotor, clinopodiums, pump impeller. Drying cylinder. Ceramic machinery, rollers, rubber sticks, etc...Driven by universal joints, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. With wide speed range, large driving power, high precision and easy operation etc
Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Production Parameters

                Technical data at a glance                PHW-1000                PHW-2000
                Mass Scope of Workpiece (kg)                1000                2000
                Max Diameter of Workpiece (mm)                1500                1800
                Distance Between Two Support Bearings (mm)                Min:100                Min:100
                Journal Diameter Scope of Workpiece (mm)                20~180                40~240
                Max Distance between Driving Flange and Right Bearing Support (mm)                1500                1800
                Rotation Speed of the Main Axis (r/min)                600,1095 +Stepless speed regulation                560,1490 +Stepless speed regulation
                Motor Power (kw)                4 Frequency conversion                7.5 Frequency conversion
                Torque of Universal Joint Shaft (N,m)                300                300
                Min Achievable Residual Unbalance Amount (emar)                ≤ 1g, mm/kg                 ≤ 1g, mm/kg
