Product Details

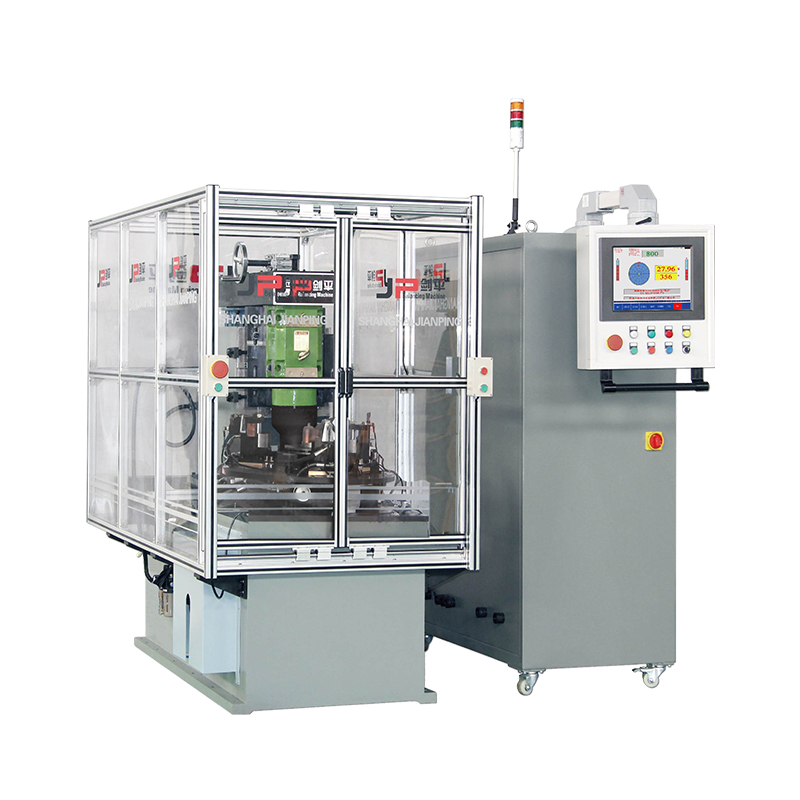

Brake Disc Automatic Balancing Correction Machines in Hot Sale

Basic Info.

Model NO.:A1LX20Package:Fumigated Wood Box
Milling Method:Double Cutter DrillingPower:AC380V or Custom
HS Code:9031100090Production Capacity:100

Product Description

Brake Disc Automatic Balancing Correction Machines in hot sale

Production Description 1.Manual loading and unloading
2.15-inch touch screen
3.Advanced balancing measuring software
4.Automatic measure,automatic milling and correction,automatic retest
5.Rigidity structure design,with a longer use life  Range of Application Two-Station Automatic Balancing Correction Machine is designed specially for rotors'balance measurement and correction.which use end face to remove weight,It can connect rotor production line to achieve automatic production Production Parameters

Data Rotors
Max Mass of Workpiece(kg)35
Max Diameter of Workpiece (mm)450
Balancing Unit Parameter
Spindle Speed (r/min)800
Motor Power(kw)1.5
Min Achievable Residual Unbalance Amount (emar)5g· mm/kg
Unbalance Correction
Maximum Milling Depth(mm)Depending on rotor
Maximum Milling Width(mm)Depending on rotor
Cutting Speed(r/min)900
Cutting Spindle Motor Power(kw)2.2
Maximum Milling Angle(degree)0-90
Milling Cutter Range(mm)60-125
Machine Parameter
