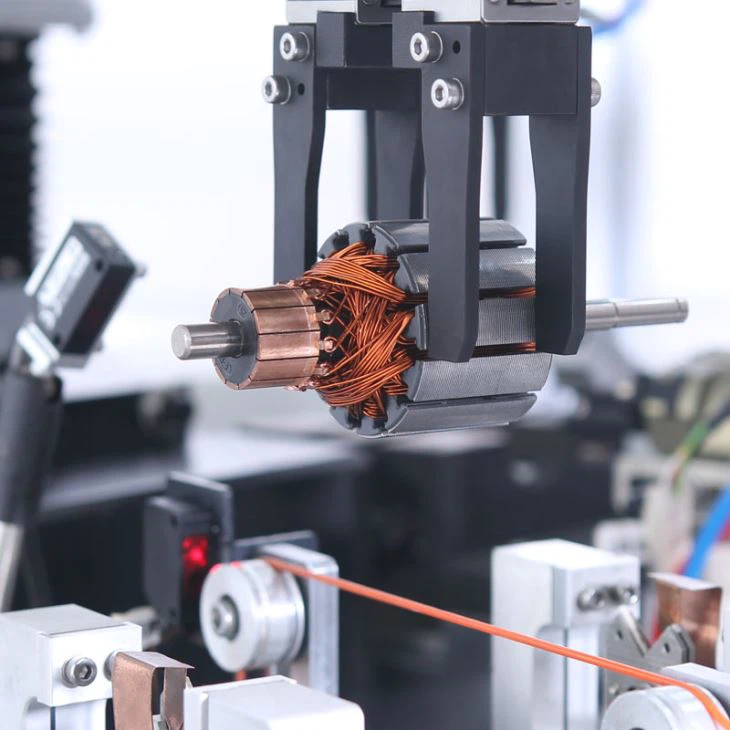

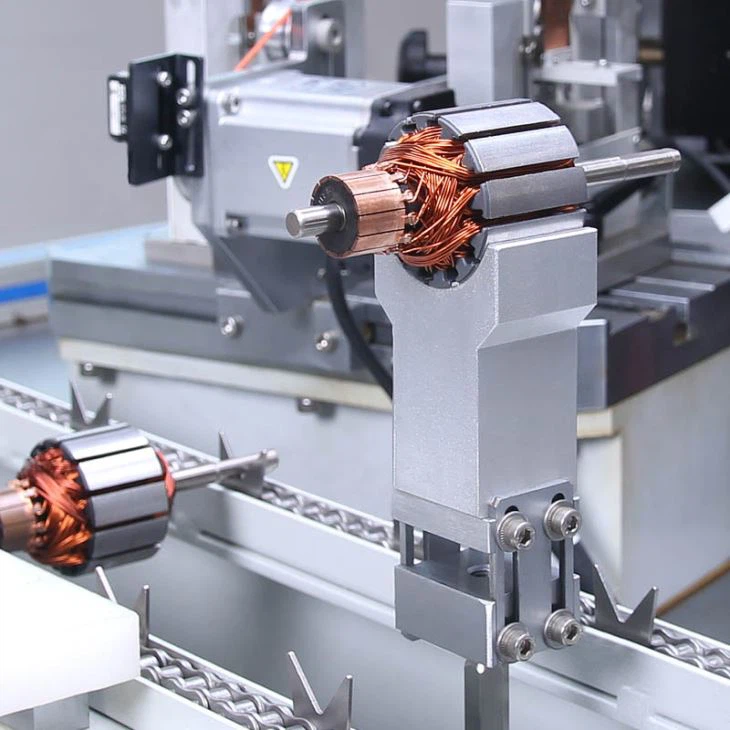

Five Station Wound Rotor Automatic Balancing Machine
1.Automatic loading and unloading of the assembly line
2.Friendly human- machine interface
3.Wide range of product applications ,quick and easy product change
4.Rapid production beats, a high reduction rate
5.Soft support high-precision balance measurement system
6.Independent research and development of software and hardware, equipment can be personalized features
7.Widely uesd in all kinds of household appliances,electric tools,starter motor rotor balance correction,product comes with automatic line in and out of the maerial,the degree of automation is extremely high
7.Widely uesd in all kinds of household appliances,electric tools,starter motor rotor balance correction,product comes with automatic line in and out of the maerial,the degree of automation is extremely high

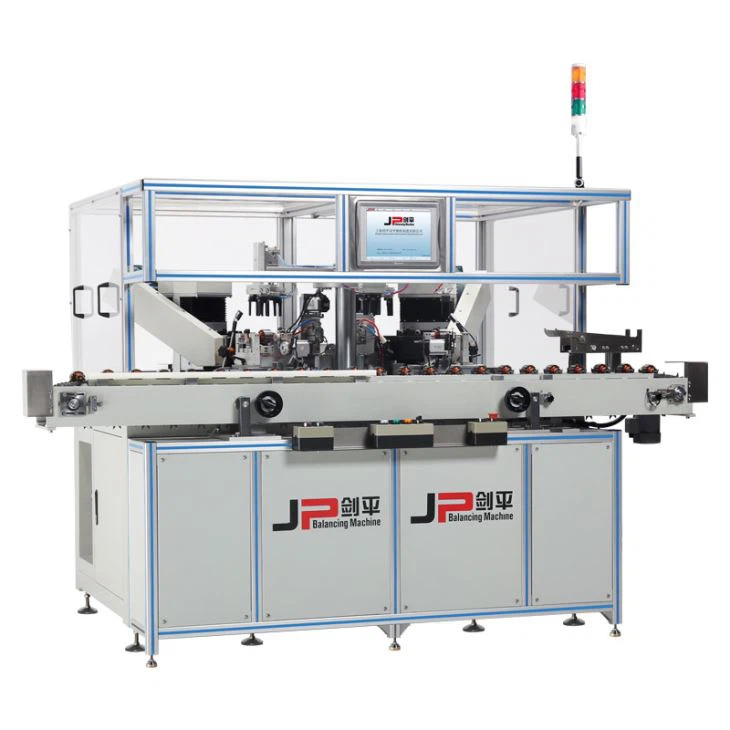

Five Station Wound Rotor Automatic Balancing Machines
| Technical data at a glance | W5WX21 |
| Max Weight of Workpiece (kg) | 1.5 |
| Max Diameter of Workpiece (mm) | 30～60mm |
| Rotor Length (mm) | ≤240mm |
| Rotor Lamination Thickness(mm) | φ20～60mm |
| Balancing Speed (r/min) | 800～1200rpm |
| Balancing Motor Power (kw) | 0.4 KW Servo Motor |
| Min Achievable Residual Unbalance Amount (g.mm/kg) | ≤0.2 |
| Testing Time (second) | ～9s |
| Reduction Rate of Unbalance | ≥90% |
| Working Pressure (MPa) | 0.45-0.6 |
| Air Consumption | ～40L/min |
| Operating Voltage (V) | AC: 380V 3 Phase/50Hz |
| Drilling Power (kw) | 0.75*2 |
| Total Power (kw) | ～8.9 |
| Protection | Phase Sequence Protection, Overload Protection, Air Pressure Monitoring |
