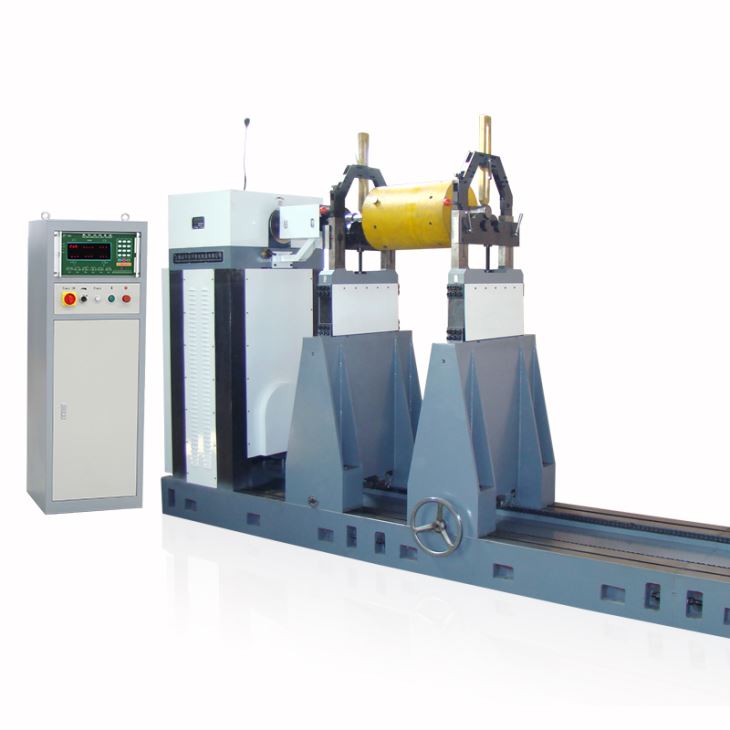

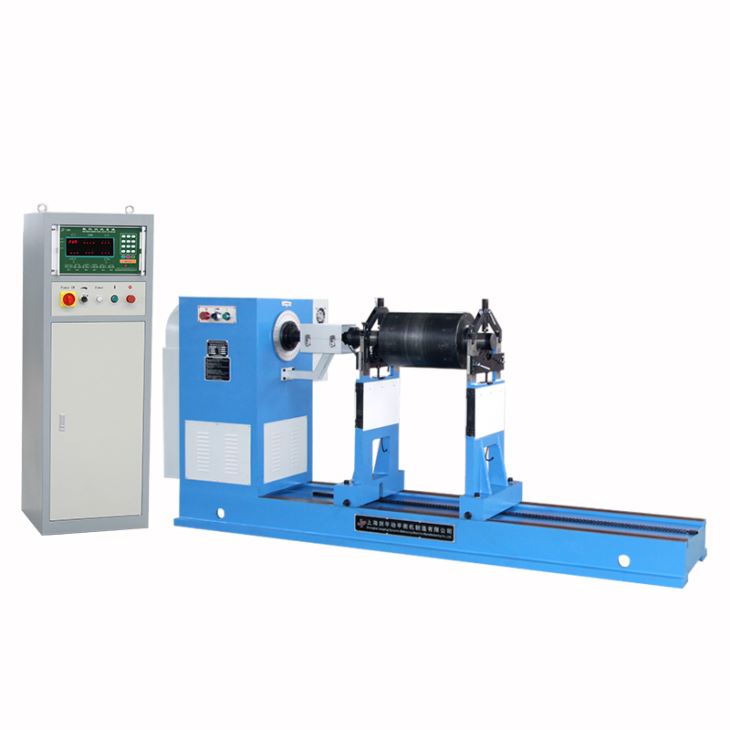

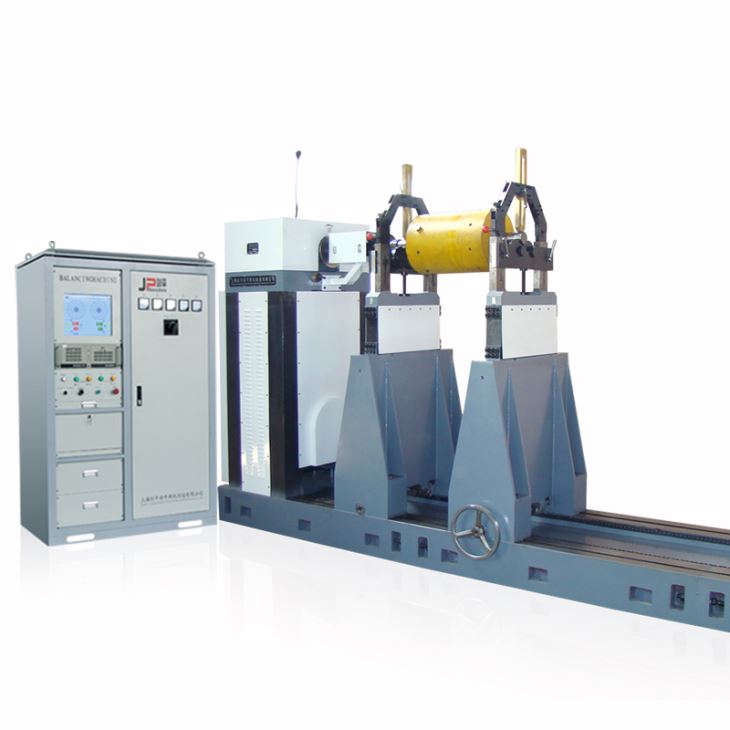

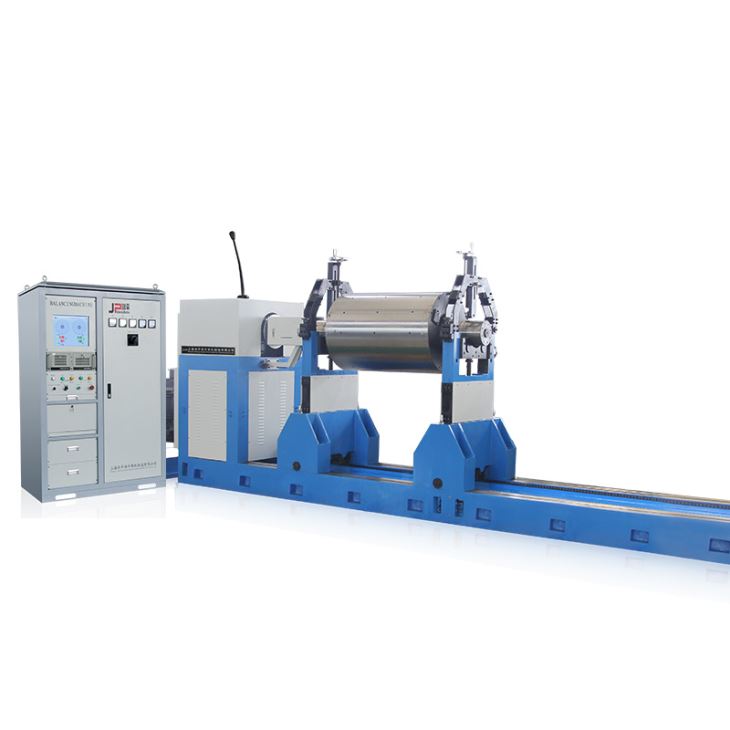

Universal Joint Drive Balancing Machines
1. Special designed brackets can effectively transmit mechanical force
2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface
Applicable to Small workpieces
| Technical data at a glance | PHW-160H | PHW-300H | PHW-500H |
| Mass Scope of Workpiece(kg) | 160 | 300 | 500 |
| Max Diameter of Workpiece(mm) | Φ1000 | Φ1200 | Φ1500 |
| Distance Between Two Support Bearings(mm) | Min 60 | Min 60 | Min 60 |
| Journal Diameter Scope of Workpiece(mm) | Φ15~752) | Φ15~752) | Φ15~752) |
| Max Distance between Driving Flange and Right Bearing Support (mm) | 1500 | 1500 | 1500 |
| Rotational Speed of the Main Axis(r/min) | 600,10954) | 600,10954) | 600,10954) |
| Motor Power (kw) | 31) | 31) | 41) |
| Torque of Universal Joint Shaft(N·m) | 60 | 60 | 60 |
| Length of Bed (mm) | 2500 | 2500 | 2500 |
| Min Achievable Residual Unbalance Amount(emar) | ≤1g· mm/kg | ≤1g· mm/kg | ≤1g· mm/kg |
Applicable to medium workpieces
| Technical data at a glance | PHW-1000H | PHW-2000H | PHW-3000H | PHW-5000 |
| Mass Scope of Workpiece(kg) | 1000 | 2000 | 3000 | 5000 |
| Max Diameter of Workpiece(mm) | Φ1600 | Φ1800 | Φ2100 | Φ2400 |
| Distance Between Two Support Bearings(mm) | Min 60 | Min 60 | Min 60 | Min 320 |
| Journal Diameter Scope of Workpiece(mm) | Φ25~1203) | Φ25~1203) | Φ25~1203) | Φ40~380 |
| Max Distance between Driving Flange and Right Bearing Support (mm) | 1600 | 1900 | 1900 | 2500 |
| Rotational Speed of the Main Axis(r/min) | 600,10954) | 485,8184) | 133,225,396. 634,9704) | 192,325,571, 915,14004) |
| Motor Power (kw) | 41) | 7.51) | 7.51) | 151) |
| Torque of Universal Joint Shaft(N·m) | 250 | 300 | 700 | 1250 |
| Length of Bed (mm) | 2500 | 3000 | 3000 | 4000 |
| Min Achievable Residual Unbalance Amount(emar) | ≤1g· mm/kg | ≤1g· mm/kg | ≤1g· mm/kg | ≤1g· mm/kg |
Applicable to Large workpieces
| Technical data at a glance | PHW-10000H | PHW-15000 | PHW-20000 | PHW-30000 |
| Mass Scope of Workpiece(kg) | 10000 | 15000 | 20000 | 30000 |
| Max Diameter of Workpiece(mm) | Φ2400 | Φ2800 | Φ2800 | Φ3000 |
| Distance Between Two Support Bearings(mm) | Min 450 | Min 450 | Min 450 | Min 500 |
| Journal Diameter Scope of Workpiece(mm) | Φ60~500 | Φ60~400 | Φ60~400 | Φ80~500 |
| Max Distance between Driving Flange and Right Bearing Support (mm) | 4000 | 4200 | 5200 | 6000 |
| Rotational Speed of the Main Axis(r/min) | Stepless speed regulation | 195,336,561, 916,13744) | 195,336,561, 916,13744) | 127,218,365, 596,895,11044) |
| Motor Power (kw) | 221) | 301) | 551) | 751) |
| Torque of Universal Joint Shaft(N·m) | 1250 | 2250 | 5000 | 7800 |
| Length of Bed (mm) | 4000 | 6000 | 7000 | 8000 |
| Min Achievable Residual Unbalance Amount(emar) | ≤2g· mm/kg | ≤2g· mm/kg | ≤2g· mm/kg | ≤2g· mm/kg |
1) Frequency conversion
2) Can add to 75-180
3)Can add to 120~240
4)Stepless speed regulation
