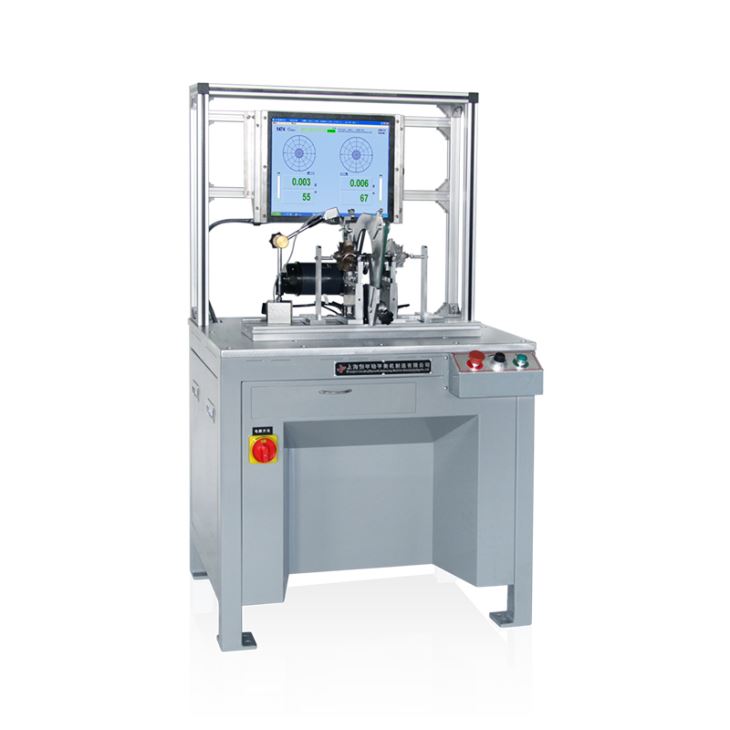

Electric Turbocharger Belt Drive Balancing Machine
Production Description
• Widely used in balancing turbocharger, turbocharger impellers,turbocharger compressors ,turbocharger turbines etc .
• Auto-positioning bed,17#LCD screen,large tool carriage structure
• Dedicated bracket,driven by Nylon belt ,variable speed motor 230W
| Technical data at a glance | PHZY-1.6/5/16 |
| Maximum weight of workpiece(kg) | 1.6/5/16 |
| Maximum diameter of workpiece(mm) | 300 |
| The distance between two bearing pedestals (mm) | 25-480 |
| Journal diameter on roller carriages(mm) | 3-40 |
| Belt driving diameter(mm) | 15-150 |
| Rotation speed when the diameter of operating transmission is 100mm(r/min) | ~1470 |
Motor power (kw) | 0.23DC |
Minimum achievable residual unbalance (emar) | <=0.3g.mm/kg |
Hot Tags: Electric Turbocharger Belt Drive Balancing Machine,Horizontal Balancing Machine
