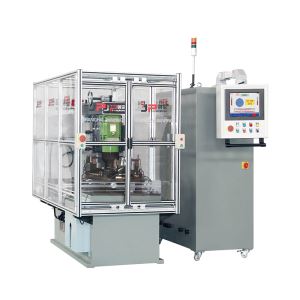

Carbon Brake Disc Automatic Balancing Correction Machines in Hot Sale
Basic Info.
| Model NO.:A1LX20 | Package:Fumigated Wood Box |
| Trademark:JP | Origin:Shanghai |
| Milling Method:Double Cutter Drilling | Power:AC380V or Custom |
| Length:1130mm | Width:1200mm |
| Height:1700mm | Pneumatic:0.4-0.6MPa |
| HS Code:9031100090 | Production Capacity:100 |
The Front Wheel Brake Disc Automatic Balancing Correction Machines in hot sale
Production Description
1.Manual loading and unloading
2.15-inch touch screen
3.Advanced balancing measuring software
4.Automatic measure,automatic milling and correction,automatic retest
5.Rigidity structure design,with a longer use life Range of Application Two-Station Automatic Balancing Correction Machine is designed specially for rotors'balance measurement and correction.which use end face to remove weight,It can connect rotor production line to achieve automatic production Production Parameters
| Data Rotors | |
| Max Mass of Workpiece(kg) | 35 |
| Max Diameter of Workpiece (mm) | 450 |
| Balancing Unit Parameter | |
| Spindle Speed (r/min) | 800 |
| Motor Power(kw) | 1.5 |
| Min Achievable Residual Unbalance Amount (emar) | 5g· mm/kg |
| Unbalance Correction | |
| Maximum Milling Depth(mm) | Depending on rotor |
| Maximum Milling Width(mm) | Depending on rotor |
| Cutting Speed(r/min) | 900 |
| Cutting Spindle Motor Power(kw) | 2.2 |
| Maximum Milling Angle(degree) | 0-90 |
| Milling Cutter Range(mm) | 60-125 |
| Machine Parameter | |
| Power(kw) | 6 |
| Weight(ton) | 1.5 |
| Dimensions(mm) | 900*1600*1800 |
