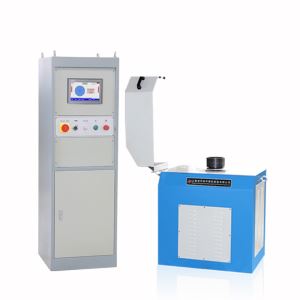

1100/3500 kg Vertical Balancing Machines
1.Specially designed,solid brackets can effectively transmit mechanical force
2.Durable and reliable sensor possesses high sensitivity and good linearity
3.Permanent calibration brings high accuracy
4.Special clamp offers higher accuracy and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.As the customer's request,the de-weighting system can be equiped
Applicable to large workpieces
| Technical data at a glance | PHLD-1100Q | PHLD-3500Q |
| Max Mass of Workpiece (kg) | 1100 | 3500 |
| Max Diameter of Workpiece (mm) | 1500 | 1500 |
| Height of workpiece(mm) | 200 | 200 |
| Spindle speed(r/min) | 120~370 | 120~370 |
| Motor power(kw) | 7.53) | 113) |
| Min Achievable Residual Unbalance Amount (emar) | 1g · mm/kg | 1g · mm/kg |
1) With hood
2) Without hood
2) Without hood
3) Frequency conversion
