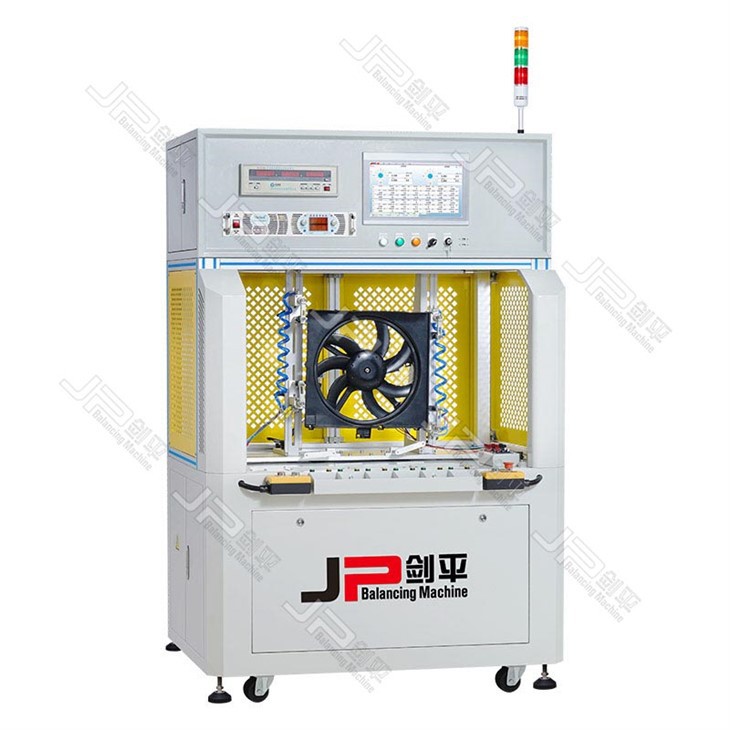

Cooling fan Balancing Machine PRZD-5HW2 cooling fan balancer machine
PRZD-5HW2(JP800) is a soft-bearing self-drive dynamic balancing machine designed and produced by Shanghai Jianping with high cost performance. Mainly used for the unbalance correction and electrical parameter test of automobile cooling fans. This machine adopts the rotor's own power to do overall balance, completely eliminates the unbalance caused by the assembly error of bearings and other parts, greatly reduces the vibration of the product, ensures the balancing quality and precision of the workpiece. It has convenient loading and unloading, quick start, high work efficiency etc. features.
1.Only one person is required for a machine.
2.Production cycle time is fast, and once reduction ratio is high.
3.Overall vertical balancing unit, fully simulates the actual working conditions and minimizes errors.
4.Electrical parameter test, balancing and electrical parameter testing are perfectly integrated, reducing processes and reducing equipment investment.
5.High sensitivity sensor with good linearity, reliable and durable.
6.Customized special fixture (replaceable type), fixed by rotary cylinder, high precision and convenient for installation and clamping.
7.Convenient for product changeover, just replace the product fixture and adjust the sensor position.
8. Motor and fan blade assembly are clamped on the frame type vibration test bench, and it is rotated by the controllable regulated power supply.
9.The equipment is equipped with safety door interlocking device and emergency brake switch, which greatly improves the safety and reliability of equipment operation.

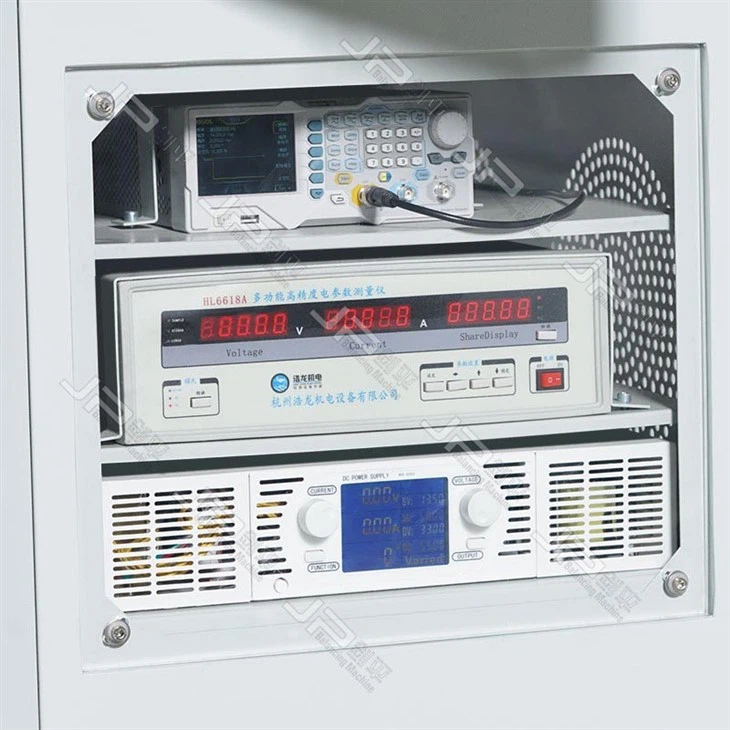

10. Advanced electronic measuring system, friendly human-machine interface, function powerful
11. Modular design, wide application range.
12.Measurement and manual weight removal data can be exported, which is convenient for users to do statistics.
