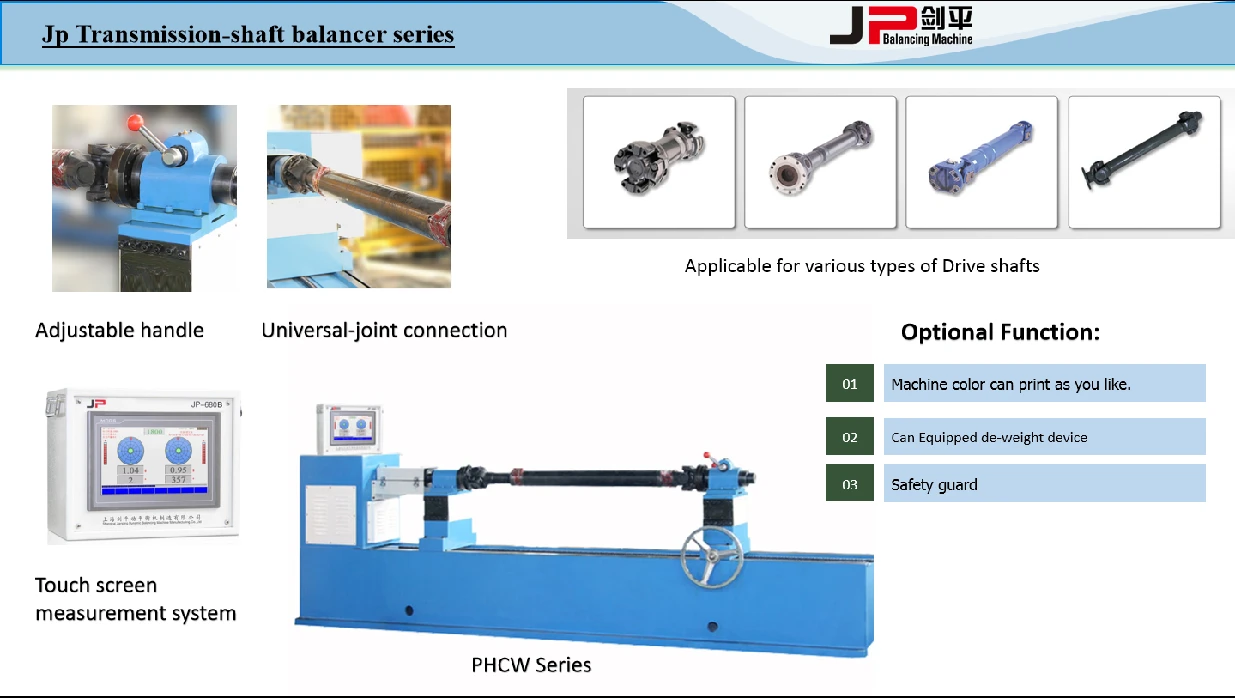

Machine use cast iron machine body can used for many many years.
Matched with 12 inches touch screen measuring system.
Free matched printer, and can add your company name & logo on the balancing report.
Machine use SKF brand bearings.
Machine use piezoelectric sensor, high Accuracy.
Matched Delta Inverter adjust work speed, more safety.
Frequency conversion motor use China famous brand.
Machine electric parts use Schneider brand.
Specially designed brackets transmit mechanical force with low vibration damping Software upgrade for free for lifetime
Our machine has passed certifications of ISO, CE, BV, SGS etc... We can provide machine URR testing report , Emar testing report. One year warranty, and provide life time technical support.
|
No. |
Specifications |
Parameters |
|
1 |
Maximum Weight of Rotor(Kg) |
100 |
|
2 |
Maximum Diameter of Rotor(mm) |
Φ130 |
|
3 |
Max shaft tube diameter(mm) |
Ф120mm |
|
4 |
Distance between two Bearing Supports(mm) |
2000 |
|
5 |
Balancing test speed (r/min) |
1600 rpm+ stepless speed regulation |
|
6 |
Motor Power (Kw) |
1.5( Frequency Motor) |
|
7 |
Universal coupling torque |
60N.m |
|
8 |
Inverter power(kw) |
1.5 |
|
9 |
Minimum Achievable Residual Unbalance |
≦2.5g.mm/Kg |
|
10 |
Power supply |
200V,3 Phases, 50H |
