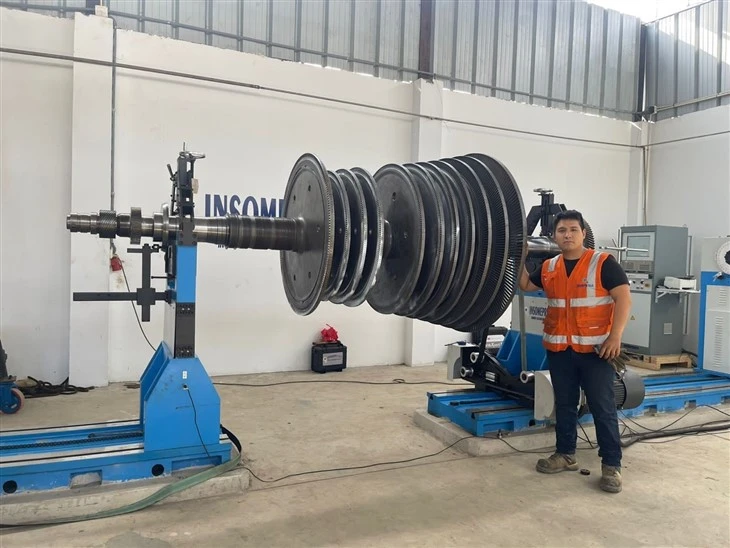

PHW-30T Universal joint Generator rotor balancing machine turbine balancing machine
Application
It is used for the unbalance correction of rotating workpieces such as large and medium-sized motor rotors, blowers, centrifugal impellers, drying cylinders, and rollers.
Features
This machine adopts Jianping measuring system, dynamic and static balancing are both available, bearing modes are up to 10 kinds, weight addition& removal, CW and CCW rotation can be flexibly customized,unbalance amount and angle display units can be customized to achieve real-time unit conversion to meet different customer needs.
Adopt universal coupling or gear box transmission, can obtain a variety of balancing speed or stepless speed regulation.
Applicable to large workpieces
| Technical data at a glance | PHW-10000H | PHW-15000H | PHW-20000H | PHW-30000 |
| Mass Scope of Workpiece(kg) | 10000 | 15000 | 20000 | 30000 |
| Max Diameter of Workpiece(mm) | Φ2400 | Φ2800 | Φ2800 | Φ3000 |
| Distance Between Two Support Bearings(mm) | Min 320 | Min 450 | Min 600 | Min 600 |
| Journal Diameter Scope of Workpiece(mm) | Φ60~400 | Φ60~400 | Φ60~400 | Φ80~500 |
| Max Distance between Driving Flange and Right Bearing Support (mm) | 4000 | 4200 | 5200 | 6000 |
| Rotational Speed of the Main Axis(r/min) | 133,255,396. 634,9704) |
138,237,396. 644,10004) |
138,237,396. 644,10004) |
138,237,396. 644,10004) |
| Motor Power (kw) | 221) | 301) | 551) | 751) |
| Torque of Universal Joint Shaft(N·m) | 2250 | 2250 | 5000 | 7800 |
| Length of Bed (mm) | 5500 | 6000 | 7000 | 8000 |
| Min Achievable Residual Unbalance Amount(emar) | ≤0.5g· mm/kg | ≤0.5g· mm/kg | ≤1g· mm/kg | ≤1g· mm/kg |
Applicable to Huge workpieces
